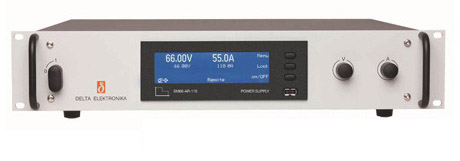

SM3300 Series
Delta Elektronika
3300W AC/DC Single Output Programmable Laboratory Power Supply
- Datasheet
- Reach declaration
- RoHS declaration
Datasheet
Declaration
Delta Elektronika releases a new programmable laboratory power supply in the power range of 3300-3600 watt. In the size of 19" and only 2U high. Features: -Designed for long life at full power.
Product features
Excellent dynamic response to load changes
Protected against all overload and short circuit conditions
EMC surpasses CE requirements: low emission & high immunity
Low audible noise: fan is temperature controlled
High voltage isolation up to 1200 V
Operation on single and three phase input voltages
Standard Ethernet interface including sequencer
Large user display, menu driven operation
Durable digital encoders for voltage and current adjustment
Plug and play optional interfaces
USB input for exchange of settings and wave forms
SM3300 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| SM18-220 | 3 phase | N/A | 3300W | Output 1: N/A (N/A to 18)VDC | Output 1: 220A |
| SM66-AR-110 | 3 phase | N/A | 3300W | Output 1: N/A (N/A to 66)VDC | Output 1: 110A |
| SM100-AR-75 | 3 phase | N/A | 3300W | Output 1: N/A (N/A to 100)VDC | Output 1: 75A |
| SM330-AR-22 | 3 phase | N/A | 3300W | Output 1: N/A (N/A to 330)VDC | Output 1: 22A |
| SM660-AR-11 | 3 phase | N/A | 3300W | Output 1: N/A (N/A to 660)VDC | Output 1: 11A |
