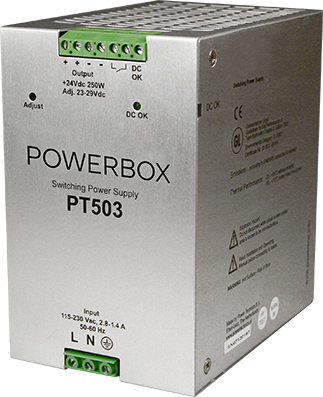

Marine Line 250
PT503 Series
Powerbox
250W AC/DC DIN-Rail for Marine and Off Shore Applications
Powerbox Marine Line PT503 power supplies for marine, offshore and demanding industrial applications have DIN-rail mounting and GL approval for ship bridges placement (EN60945). In addition the products meet requirements set for tough environmental standards, which makes them suitable for demanding areas. Small/Medium quantities are available from stock.
Product features
GL approved for bridge use
Universal input 90-265VAC
Up to 90% efficiency
Active Power Factor Correction
Adjustable output
Overload and overvoltage protection
Thermal overload protection
DC OK signal and potential free contact
Cooling by free air convection
DIN-Rail mounting on back or side
RoHS compliant
PT503 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| PT503 | 110/230VAC | 250 (125 to 375)VDC | 250W | Output 1: 24 (23 to 29)VDC | Output 1: 10.4A |
