PLA Load Series
Ametek
800W to 7.5kW Air Cooled Programmable DC Electronic Load
- Datasheet
- Programming manual
- Manual
Datasheet
Manual

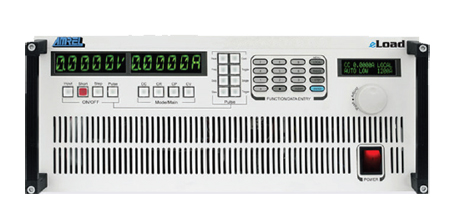

Traditional DC electronic load solutions are bulky and large in size. Most are offered with standard voltage, current and power ratings. In the ATE world, rack space is a highly coveted asset and application demands are constantly diversifying with new technology development. AMREL’s PLA Series of “Air-cooled” DC electronic loads offers the industry’s smallest footprint, the highest power density and current rating, along with the broadest selection of high voltage models on the market. PLA models are capable of being custom-tailored to meet your application requirements.
Product features
Broadest model selection: 800W to 7.5kW (higher power available up to 250kW contact factory)
Exclusive voltage models: 10V to 1200V
Multiple loads in one: Multiple ranges for voltage, current resistance and power
Intuitive front panel control: Run sequences, triggers, constant current to constant power cross over
PLA Load Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| PLA800-60-300 | 110/230VAC | N/A | 800W | Output 1: 60 (0.75 to 60)VDC | Output 1: 300A |
| PLA800-120-150 | 110/230VAC | N/A | 800W | Output 1: 120 (1.8 to 120)VDC | Output 1: 150A |
| PLA800-400-50 | 110/230VAC | N/A | 800W | Output 1: 400 (2.7 to 400)VDC | Output 1: 50A |
| PLA800-600-30 | 110/230VAC | N/A | 800W | Output 1: 600 (7.8 to 600)VDC | Output 1: 30A |
| PLA800-800-15 | 110/230VAC | N/A | 800W | Output 1: 800 (3.9 to 800)VDC | Output 1: 15A |
| PLA800-1000-5 | 110/230VAC | N/A | 800W | Output 1: 1000 (5 to 1000)VDC | Output 1: 5A |
| PLA1.5K-60-600 | 110/230VAC | N/A | 1500W | Output 1: 60 (0.75 to 60)VDC | Output 1: 600A |
| PLA1.5K-120-300 | 110/230VAC | N/A | 1500W | Output 1: 120 (1.8 to 120)VDC | Output 1: 300A |
| PLA1.5K-400-100 | 110/230VAC | N/A | 1500W | Output 1: 400 (2.7 to 400)VDC | Output 1: 100A |
| PLA1.5K-600-60 | 110/230VAC | N/A | 1500W | Output 1: 600 (7.8 to 600)VDC | Output 1: 60A |
| PLA1.5K-800-30 | 110/230VAC | N/A | 1500W | Output 1: 800 (3.9 to 800)VDC | Output 1: 30A |
| PLA1.5K-1000-12 | 110/230VAC | N/A | 1500W | Output 1: 1000 (6 to 1000)VDC | Output 1: 12A |
| PLA2K-60-600 | 110/230VAC | N/A | 2000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 600A |
| PLA2K-120-400 | 110/230VAC | N/A | 2000W | Output 1: 120 (1.8 to 120)VDC | Output 1: 400A |
| PLA2K-400-150 | 110/230VAC | N/A | 2000W | Output 1: 400 (2.7 to 400)VDC | Output 1: 150A |
| PLA2K-600-100 | 110/230VAC | N/A | 2000W | Output 1: 600 (8.4 to 600)VDC | Output 1: 100A |
| PLA2.5K-60-1000 | 110/230VAC | N/A | 2500W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1000A |
| PLA2.5K-120-600 | 110/230VAC | N/A | 2500W | Output 1: 120 (1.8 to 120)VDC | Output 1: 600A |
| PLA2.5K-400-200 | 110/230VAC | N/A | 2500W | Output 1: 400 (2.7 to 400)VDC | Output 1: 200A |
| PLA2.5K-600-120 | 110/230VAC | N/A | 2500W | Output 1: 600 (7.8 to 600)VDC | Output 1: 120A |
| PLA3K-60-1000 | 110/230VAC | N/A | 3000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1000A |
| PLA3K-120-800 | 110/230VAC | N/A | 3000W | Output 1: 120 (1.6 to 120)VDC | Output 1: 800A |
| PLA3K-400-300 | 110/230VAC | N/A | 3000W | Output 1: 400 (2.7 to 400)VDC | Output 1: 300A |
| PLA3K-600-150 | 110/230VAC | N/A | 3000W | Output 1: 600 (7.2 to 600)VDC | Output 1: 150A |
| PLA3K-800-50 | 110/230VAC | N/A | 3000W | Output 1: 800 (2.5 to 800)VDC | Output 1: 50A |
| PLA3K-1000-30 | 110/230VAC | N/A | 3000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 30A |
| PLA4K-60-1200 | 110/230VAC | N/A | 4000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1200A |
| PLA4K-120-1000 | 110/230VAC | N/A | 4000W | Output 1: 120 (1.8 to 120)VDC | Output 1: 1000A |
| PLA4K-400-360 | 110/230VAC | N/A | 4000W | Output 1: 400 (2.7 to 400)VDC | Output 1: 360A |
| PLA4K-600-200 | 110/230VAC | N/A | 4000W | Output 1: 600 (7.8 to 600)VDC | Output 1: 200A |
| PLA5K-60-1200 | 110/230VAC | N/A | 5000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1200A |
| PLA5K-120-1200 | 110/230VAC | N/A | 5000W | Output 1: 120 (1.8 to 120)VDC | Output 1: 1200A |
| PLA5K-400-400 | 110/230VAC | N/A | 5000W | Output 1: 400 (2.8 to 400)VDC | Output 1: 400A |
| PLA5K-600-240 | 110/230VAC | N/A | 5000W | Output 1: 600 (7.8 to 600)VDC | Output 1: 240A |
| PLA5K-800-100 | 110/230VAC | N/A | 5000W | Output 1: 800 (3.6 to 800)VDC | Output 1: 100A |
| PLA5K-1000-50 | 110/230VAC | N/A | 5000W | Output 1: 1000 (6 to 1000)VDC | Output 1: 50A |
| PLA6K-60-1500 | 110/230VAC | N/A | 6000W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1500A |
| PLA6K-120-1500 | 110/230VAC | N/A | 6000W | Output 1: 120 (1.8 to 120)VDC | Output 1: 1500A |
| PLA6K-400-500 | 110/230VAC | N/A | 6000W | Output 1: 400 (3 to 400)VDC | Output 1: 500A |
| PLA6K-600-300 | 110/230VAC | N/A | 6000W | Output 1: 600 (8.4 to 600)VDC | Output 1: 300A |
| PLA7.5K-60-1500 | 110/230VAC | N/A | 7500W | Output 1: 60 (0.6 to 60)VDC | Output 1: 1500A |
| PLA7.5K-120-1500 | 110/230VAC | N/A | 7500W | Output 1: 120 (1.8 to 120)VDC | Output 1: 1500A |
| PLA7.5K-400-600 | 110/230VAC | N/A | 7500W | Output 1: 400 (2.7 to 400)VDC | Output 1: 600A |
| PLA7.5K-600-400 | 110/230VAC | N/A | 7500W | Output 1: 600 (8.4 to 600)VDC | Output 1: 400A |
| PLA7.5K-800-150 | 110/230VAC | N/A | 7500W | Output 1: 800 (3.6 to 800)VDC | Output 1: 150A |
| PLA7.5K-1000-75 | 110/230VAC | N/A | 7500W | Output 1: 1000 (6 to 1000)VDC | Output 1: 75A |
