Industrial Line 450
OBQ39 Series
Powerbox

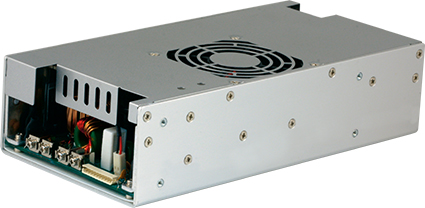

450-480W Single and Multiple Output AC/DC Switch Mode Power Supply
- Datasheet
- Reach declaration
- RoHS declaration
- DoC declaration
- Certificate cTÜVus
- Certificate TÜV
- CB certificate
Datasheet
Declaration
Approval & certification
***Not for new design*** The Powerbox Industrial line product range is a family of high density power supplies intended for applications demanding extremely high performance on both reliability and electrical safety. The products utilize innovative technologies and offers both AC/DC and DC/DC conversion, offering a wide range of inputs and output combinations. The portfolio includes high density externals, open frames, enclosed, DIN-rail, and board mounted DC/DC converters.
Product features
EN61000-3-2 class A and D compliant
Power Factor 0.98 typical
Overvoltage protection
Short-circuit protection
Thermal protection
Power Fail Detect (PFD) Signal
100% burn-in at full rated load
Remote sense on output #1 and output #2
Remote inhibit – TTL high to disable output
Compliant with RoHS requirements
OBQ39 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| OBQ39031B | 110/230VAC | N/A | 225W | Output 1: 12 (11.4 to 12.6)VDC | Output 1: 37.5A |
| OBQ39037B | 110/230VAC | N/A | 225W | Output 1: 15 (14.25 to 15.75)VDC | Output 1: 30A |
| OBQ39046B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC | Output 1: 18.75A |
| OBQ39050B | 110/230VAC | N/A | 225W | Output 1: 27 (25.65 to 28.35)VDC | Output 1: 16.7A |
| OBQ39055B | 110/230VAC | N/A | 225W | Output 1: 30 (28.5 to 31.5)VDC | Output 1: 15A |
| OBQ39063B | 110/230VAC | N/A | 240W | Output 1: 40 (38 to 42)VDC | Output 1: 12A |
| OBQ39070B | 110/230VAC | N/A | 240W | Output 1: 48 (45.6 to 50.4)VDC | Output 1: 10A |
| OBQ39078B | 110/230VAC | N/A | 240W | Output 1: 55 (52.25 to 57.75)VDC | Output 1: 8.73A |
| OBQ392C1B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC | Output 1: 12A Output 2: 17A |
| OBQ392C4B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC | Output 1: 12A Output 2: 15A |
| OBQ392C6B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 24 (24 to 24)VDC | Output 1: 6A Output 2: 10A |
| OBQ392C7B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC | Output 1: 6A Output 2: 17A |
| OBQ392C9B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC | Output 1: 6A Output 2: 15A |
| OBQ39371B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 12A Output 2: 17A Output 3: 8A |
| OBQ39374B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 12A Output 2: 15A Output 3: 8A |
| OBQ39377B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 12A Output 2: 17A Output 3: 8A |
| OBQ39380B | 110/230VAC | N/A | 225W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 12A Output 2: 15A Output 3: 8A |
| OBQ39383B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 6A Output 2: 17A Output 3: 8A |
| OBQ39386B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 6A Output 2: 15A Output 3: 8A |
| OBQ39389B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 6A Output 2: 17A Output 3: 8A |
| OBQ39392B | 110/230VAC | N/A | 225W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 6A Output 2: 15A Output 3: 8A |
| OBQ39031C | 110/230VAC | N/A | 450W | Output 1: 12 (11.4 to 12.6)VDC | Output 1: 37.5A |
| OBQ39037C | 110/230VAC | N/A | 450W | Output 1: 15 (14.25 to 15.75)VDC | Output 1: 30A |
| OBQ39046C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC | Output 1: 18.75A |
| OBQ39050C | 110/230VAC | N/A | 450W | Output 1: 27 (25.65 to 28.35)VDC | Output 1: 16.7A |
| OBQ39055C | 110/230VAC | N/A | 450W | Output 1: 30 (28.5 to 31.5)VDC | Output 1: 15A |
| OBQ39063C | 110/230VAC | N/A | 480W | Output 1: 40 (38 to 42)VDC | Output 1: 12A |
| OBQ39070C | 110/230VAC | N/A | 480W | Output 1: 48 (45.6 to 50.4)VDC | Output 1: 10A |
| OBQ39078C | 110/230VAC | N/A | 480W | Output 1: 55 (52.25 to 57.75)VDC | Output 1: 8.73A |
| OBQ392C1C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC | Output 1: 12A Output 2: 17A |
| OBQ392C4C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC | Output 1: 12A Output 2: 15A |
| OBQ392C6C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 24 (24 to 24)VDC | Output 1: 6A Output 2: 10A |
| OBQ392C7C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC | Output 1: 6A Output 2: 17A |
| OBQ392C9C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC | Output 1: 6A Output 2: 15A |
| OBQ39371C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 12A Output 2: 17A Output 3: 8A |
| OBQ39374C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 12A Output 2: 15A Output 3: 8A |
| OBQ39377C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 12 (12 to 12)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 12A Output 2: 17A Output 3: 8A |
| OBQ39380C | 110/230VAC | N/A | 450W | Output 1: 24 (22.8 to 25.2)VDC Output 2: 15 (15 to 15)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 12A Output 2: 15A Output 3: 8A |
| OBQ39383C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 6A Output 2: 17A Output 3: 8A |
| OBQ39386C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC Output 3: 3.3 (2.805 to 3.795)VDC | Output 1: 6A Output 2: 15A Output 3: 8A |
| OBQ39389C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 12 (12 to 12)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 6A Output 2: 17A Output 3: 8A |
| OBQ39392C | 110/230VAC | N/A | 450W | Output 1: 48 (45.6 to 50.4)VDC Output 2: 15 (15 to 15)VDC Output 3: 5.1 (4.335 to 5.865)VDC | Output 1: 6A Output 2: 15A Output 3: 8A |
