Industrial Line 06

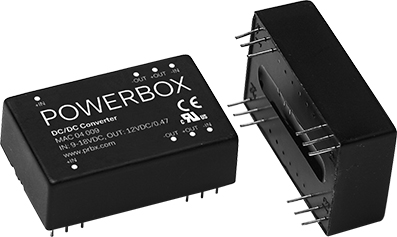

MAC04 Series
Powerbox
5-6W 2:1 Single and Dual Output DC/DC Converter
Powerbox offering of over 5000 DC/DC modules is one of the wides in the market ranging from 1W up to 60W with industry standard packages and pinouts. Powerbox modules offer quick time to market solution to nearly any low power DC/DC conversion requirement in any application demanding industrial, medical, defense or transportation space such as marine, railway, automotive and avionics. MAC04 Series of 6W converters has build in Pi input filter for high EMC performance.
Product features
24-pin DIP package
Isolation voltage 500 VDC standard, 1,5kVDC HM-option and 3kVDC H-option
Efficiency to 84%
2:1 input range
Regulated outputs
Pi input filter
Continuous short circuit protection
Meets EN55022 Class B, conducted
Remote ON/OFF option
RoHS compliant
MAC04 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| MAC04006 | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009 | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012 | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018 | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021 | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015 | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024 | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027 | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030 | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033 | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039 | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042 | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036 | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048 | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051 | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054 | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060 | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063 | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057 | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045 | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006H | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009H | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012H | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018H | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021H | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015H | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024H | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027H | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030H | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033H | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039H | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042H | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036H | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048H | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051H | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054H | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060H | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063H | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057H | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045H | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006HT | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009HT | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012HT | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018HT | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021HT | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015HT | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024HT | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027HT | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030HT | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033HT | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039HT | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042HT | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036HT | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048HT | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051HT | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054HT | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060HT | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063HT | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057HT | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045HT | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006M | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009M | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012M | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018M | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021M | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015M | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024M | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027M | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030M | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033M | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039M | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042M | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036M | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048M | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051M | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054M | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060M | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063M | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057M | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045M | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006HM | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009HM | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012HM | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018HM | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021HM | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015HM | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024HM | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027HM | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030HM | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033HM | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039HM | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042HM | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036HM | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048HM | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051HM | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054HM | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060HM | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063HM | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057HM | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045HM | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04009HMT | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012HMT | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018HMT | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021HMT | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015HMT | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024HMT | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027HMT | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030HMT | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033HMT | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039HMT | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042HMT | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036HMT | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048HMT | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051HMT | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054HMT | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060HMT | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063HMT | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057HMT | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045HMT | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006MS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009MS | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012MS | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018MS | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021MS | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015MS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024MS | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027MS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030MS | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033MS | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039MS | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042MS | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036MS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048MS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051MS | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054MS | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060MS | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063MS | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057MS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045MS | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006HMS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009HMS | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012HMS | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018HMS | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021HMS | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015HMS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024HMS | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027HMS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030HMS | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033HMS | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039HMS | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042HMS | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036HMS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048HMS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051HMS | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054HMS | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060HMS | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063HMS | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057HMS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045HMS | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04006HMTS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04009HMTS | N/A | 12 (9 to 18)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04012HMTS | N/A | 12 (9 to 18)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04018HMTS | N/A | 12 (9 to 18)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04021HMTS | N/A | 12 (9 to 18)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04015HMTS | N/A | 12 (9 to 18)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04024HMTS | N/A | 24 (18 to 36)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
| MAC04027HMTS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04030HMTS | N/A | 24 (18 to 36)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04033HMTS | N/A | 24 (18 to 36)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04039HMTS | N/A | 24 (18 to 36)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04042HMTS | N/A | 24 (18 to 36)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04036HMTS | N/A | 24 (18 to 36)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04048HMTS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC | Output 1: 1A |
| MAC04051HMTS | N/A | 48 (36 to 72)VDC | 5.6W | Output 1: 12 (12 to 12)VDC | Output 1: 0.47A |
| MAC04054HMTS | N/A | 48 (36 to 72)VDC | 6W | Output 1: 15 (15 to 15)VDC | Output 1: 0.4A |
| MAC04060HMTS | N/A | 48 (36 to 72)VDC | 5.5W | Output 1: 12 (12 to 12)VDC Output 2: -12 (-12 to -12)VDC | Output 1: 0.23A Output 2: 0.23A |
| MAC04063HMTS | N/A | 48 (36 to 72)VDC | 5.7W | Output 1: 15 (15 to 15)VDC Output 2: -15 (-15 to -15)VDC | Output 1: 0.19A Output 2: 0.19A |
| MAC04057HMTS | N/A | 48 (36 to 72)VDC | 5W | Output 1: 5 (5 to 5)VDC Output 2: -5 (-5 to -5)VDC | Output 1: 0.5A Output 2: 0.5A |
| MAC04045HMTS | N/A | 48 (36 to 72)VDC | 3.3W | Output 1: 3.3 (3.3 to 3.3)VDC | Output 1: 1A |
