FETA
FETA3000BC
Cosel
3000W Single Output AC/DC Switch Mode Power Supply
- Datasheet
- Optional parts
- Manual
- RoHS declaration
Datasheet
Manual
Declaration

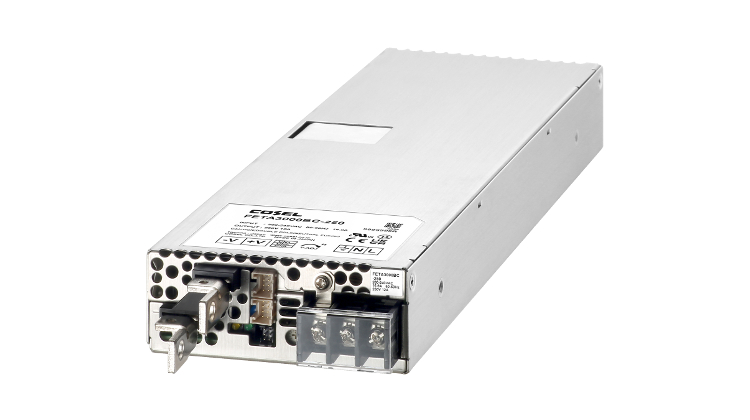

3000W AC/DC enclosed power supply with an input voltage range of 170 to 264VAC, the FETA3000BC-250 delivers a nominal output voltage of 250VDC, adjustable from 180VDC to 350VDC using the built-in potentiometer, or 100VDC to 350VDC when using the trimming analog control function available at the interface connector. The nominal output current is 12A and efficiency is up to 93% at 230VAC input. For industrial applications requiring a fast output voltage response. Designed with COSEL’s advanced built-in digital microprocessor technology, the FETA3000BC includes active current sharing, making it simple to parallel up to ten units for extra power or redundancy. For high efficiency the FETA3000BC includes an active filter and uses a phase-shift, full-bridge topology offering an efficiency level of up to 93%. Addressing demanding industrial applications, FETA3000BC’s high tech design provides a high response speed to adjustments of the output voltage across the full range.
Product features
High power density (2.11W/cm3 )
Low profile (41mm, 1.61 inch = meet to 1U height)
High efficiency (93.0%typ FETA3000BC-250, AC230Vin, 50% load)
Universal output(DC180-350V)
High-speed response
Harmonic attenuator (Complies with ＩEC61000-3-2 classA)
Complies with SEMI F47
Alarm signals, Remote ON/OFF and other functions
FETA3000BC models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| FETA3000BC-250 | 230VAC | N/A | 3000W | Output 1: 250 (180 to 350)VDC | Output 1: 12A |
