DC Source 10kW-320kW. Single Output Programmable Power Supply. Water Cooled, Rack Style

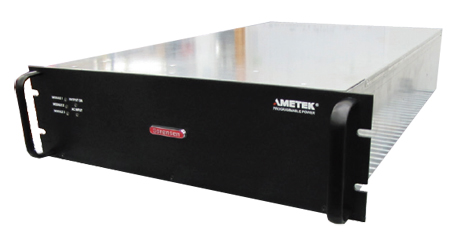

High Power water cooled power supply The ASD with its 3U, 30kW water-cooled packaging provides the highest power density available. The ASD is designed for industry leading load transient response with outstanding output ripple and noise. The water-cooling packaging allows for use in environments that normally exclude air-cooled power supplies. The advanced digital monitoring and control features combined with industry leading power density and reliability makes the Sorensen ASD the supply of choice for stringent and high value processes and applications.
Product features
Precise programming of voltage and current slew rate for sensitive loads
Modules within one chassis can be connected to different loads and controlled independently
Industrial field bus interface (Modbus-TCP, Modbus-RTU, Ethernet/IP (Industrial Protocol)) enable real-time digital control
Built-in energy meter calculates the delivered energy throughout a process or period of time
Optional real time clock enables accurate timestamping of events
Built in power quality monitoring detects and saves input voltage anomalies which can be saved for later diagnostic analysis
Programmable analog interface scaling facilitates incorporating the ASD to existing systems with minimal effort
Load impedance measurement, including rate-of-change calculations, enable load "state of health" monitoring and implementation of system preventive maintenance algorithms
Programmable filter bandwidth of the output voltage, current and power monitors let the user accommodate their response speed to particular needs
Full featured GUI (Graphical User Interface) helps to test and debug the system by communicating with the power supply in real time.
ASD Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| ASD40-00-00D2AAA | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00D2AAA | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40D2AAA | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00D2AAA | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00D2AAA | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60D2AAA | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
| ASD40-00-00D2GAA | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00D2GAA | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40D2GAA | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00D2GAA | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00D2GAA | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60D2GAA | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
| ASD40-00-00D1D | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00D1D | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40D1D | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00D1D | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00D1D | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60D1D | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
| ASD40-00-00E2AAA | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00E2AAA | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40E2AAA | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00E2AAA | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00E2AAA | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60E2AAA | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
| ASD40-00-00E2GAA | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00E2GAA | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40E2GAA | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00E2GAA | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00E2GAA | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60E2GAA | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
| ASD40-00-00E1D | 3 phase | N/A | 10000W | Output 1: 40 (N/A to 40)VDC | Output 1: 250A |
| ASD40-40-00E1D | 3 phase | N/A | 20000W | Output 1: 40 (N/A to 40)VDC | Output 1: 500A |
| ASD40-40-40E1D | 3 phase | N/A | 30000W | Output 1: 40 (N/A to 40)VDC | Output 1: 750A |
| ASD60-00-00E1D | 3 phase | N/A | 10000W | Output 1: 60 (N/A to 60)VDC | Output 1: 167A |
| ASD60-60-00E1D | 3 phase | N/A | 20000W | Output 1: 60 (N/A to 60)VDC | Output 1: 334A |
| ASD60-60-60E1D | 3 phase | N/A | 30000W | Output 1: 60 (N/A to 60)VDC | Output 1: 501A |
