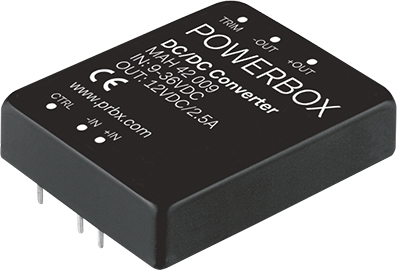

Industrial Line 30
MAH42 Series
Powerbox
20-30W 4:1 Single Output DC/DC Converter
Powerbox offering of over 5000 DC/DC modules is one of the wides in the market ranging from 1W up to 60W with industry standard packages and pinouts. Powerbox modules offer quick time to market solution to nearly any low power DC/DC conversion requirement in any application demanding industrial, medical, defense or transportation space such as marine, railway, automotive and avionics.
Product features
High efficiency up to 91%
Fixed 300KHz switching frequency
4:1 input range
Regulated outputs
Continuous short circuit protection
Six-sided metal case
2” x 1.6” size
Industry standard pin-out
RoHS compliant
MAH42 Series models
| Model # | Input voltage AC | Input voltage DCnom (min-max) |
Output power | Outputs Vnom (min-max) | Outputs A max |
|---|---|---|---|---|---|
| MAH42003 | N/A | 24 (9 to 36)VDC | 24.8W | Output 1: 3.3 (2.97 to 3.63)VDC | Output 1: 7.5A |
| MAH42006 | N/A | 24 (9 to 36)VDC | 30W | Output 1: 5 (4.5 to 5.5)VDC | Output 1: 6A |
| MAH42009 | N/A | 24 (9 to 36)VDC | 30W | Output 1: 12 (10.8 to 13.2)VDC | Output 1: 2.5A |
| MAH42012 | N/A | 24 (9 to 36)VDC | 30W | Output 1: 15 (13.5 to 16.5)VDC | Output 1: 2A |
| MAH42030 | N/A | 48 (18 to 75)VDC | 24.8W | Output 1: 3.3 (2.97 to 3.63)VDC | Output 1: 7.5A |
| MAH42033 | N/A | 48 (18 to 75)VDC | 30W | Output 1: 5 (4.5 to 5.5)VDC | Output 1: 6A |
| MAH42036 | N/A | 48 (18 to 75)VDC | 30W | Output 1: 12 (10.8 to 13.2)VDC | Output 1: 2.5A |
| MAH42039 | N/A | 48 (18 to 75)VDC | 30W | Output 1: 15 (13.5 to 16.5)VDC | Output 1: 2A |
| MAH42006N | N/A | 24 (9 to 36)VDC | 30W | Output 1: 5 (4.5 to 5.5)VDC | Output 1: 6A |
| MAH42009N | N/A | 24 (9 to 36)VDC | 30W | Output 1: 12 (10.8 to 13.2)VDC | Output 1: 2.5A |
| MAH42012N | N/A | 24 (9 to 36)VDC | 30W | Output 1: 15 (13.5 to 16.5)VDC | Output 1: 2A |
| MAH42030N | N/A | 48 (18 to 75)VDC | 24.8W | Output 1: 3.3 (2.97 to 3.63)VDC | Output 1: 7.5A |
| MAH42033N | N/A | 48 (18 to 75)VDC | 30W | Output 1: 5 (4.5 to 5.5)VDC | Output 1: 6A |
| MAH42036N | N/A | 48 (18 to 75)VDC | 30W | Output 1: 12 (10.8 to 13.2)VDC | Output 1: 2.5A |
| MAH42039N | N/A | 48 (18 to 75)VDC | 30W | Output 1: 15 (13.5 to 16.5)VDC | Output 1: 2A |
